Short Introduction

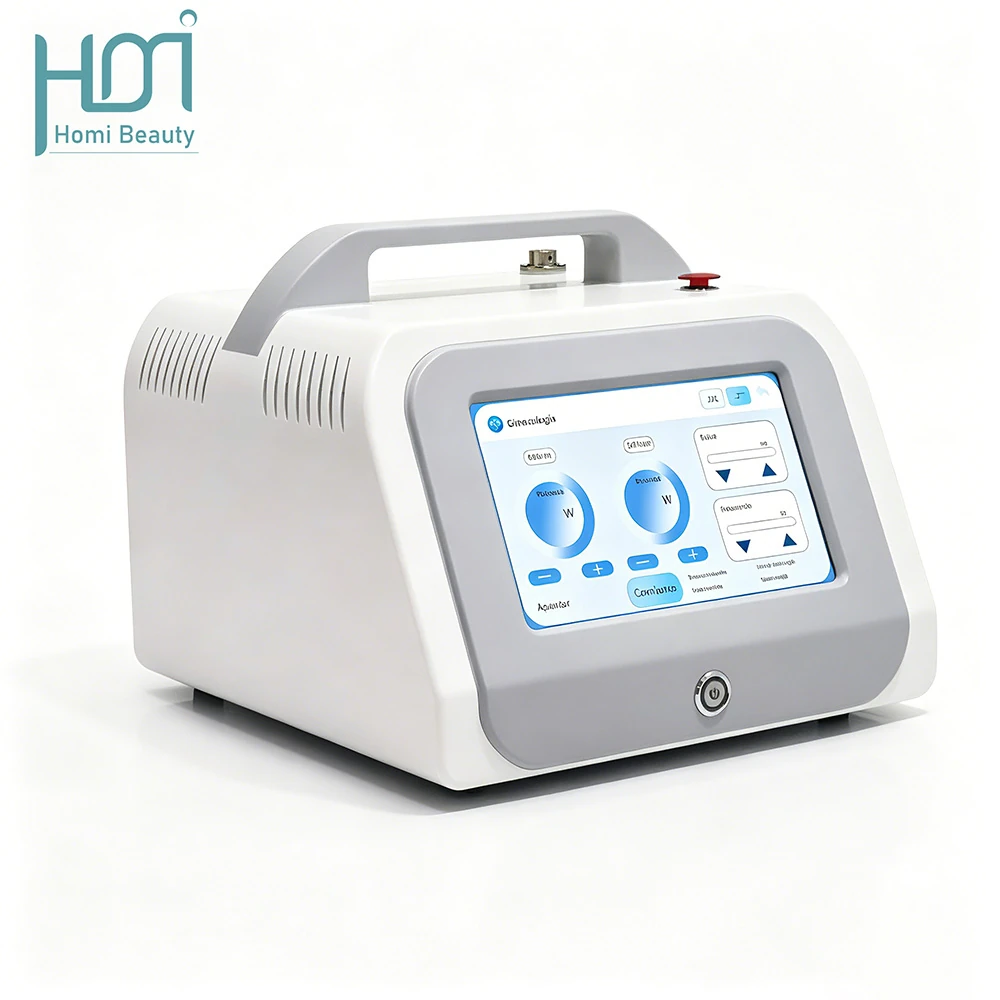

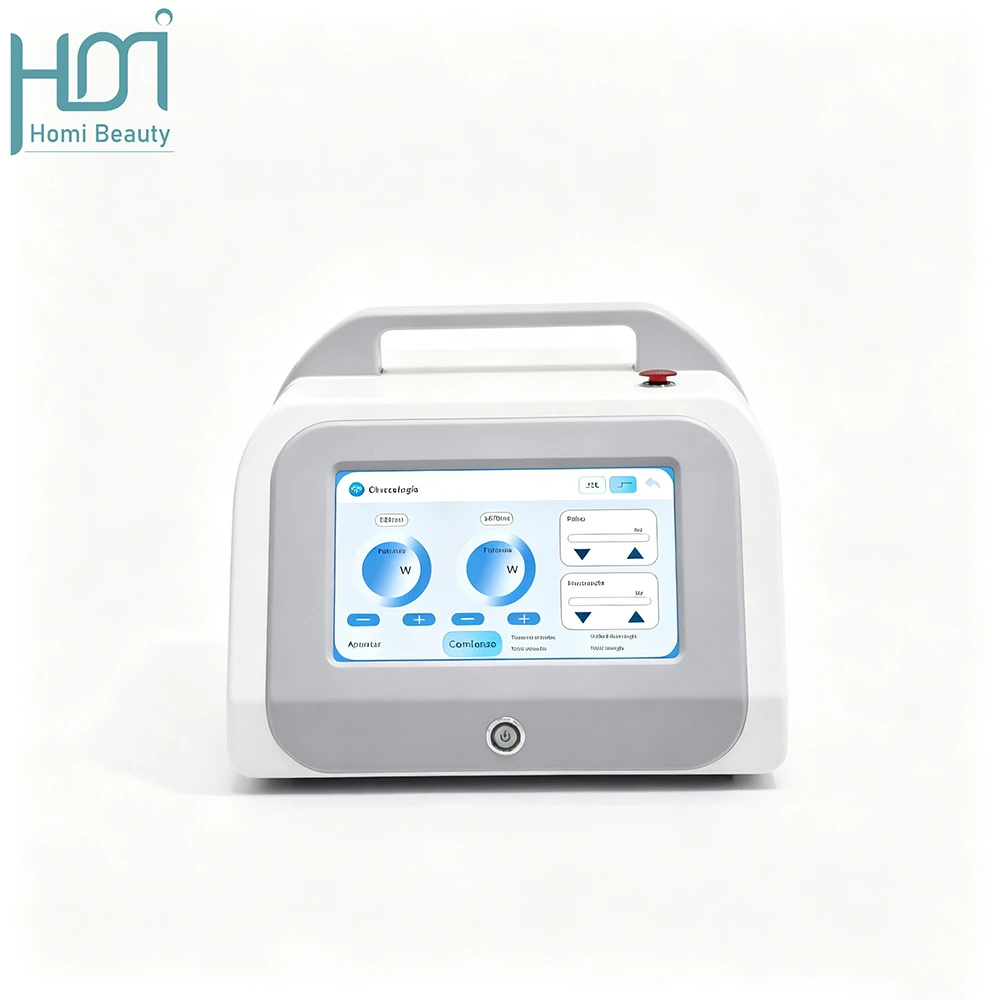

980nm Diode Laser
Spider/ Vein removal
Nail fungus / Physiotherapy
Skin rejuvenation, Anti-inflammation
Eczema and herpes treatment
Description

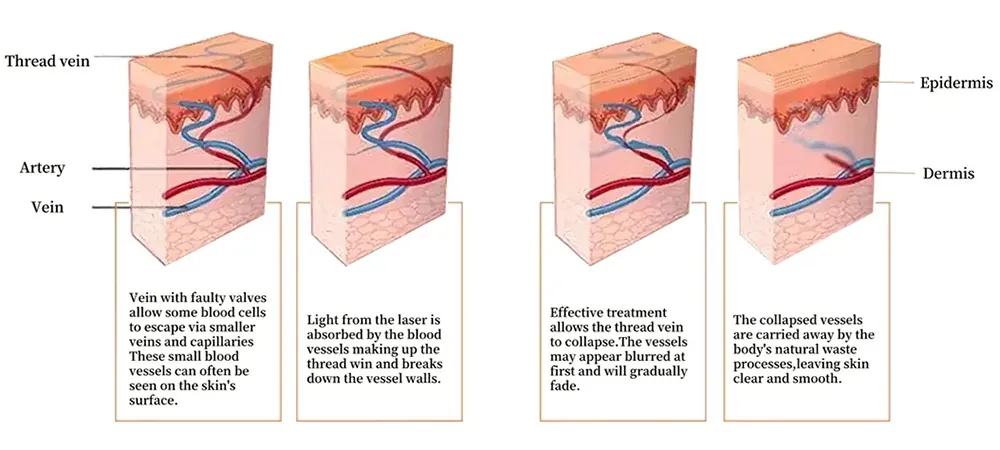

Spider/ vein
Spider/ vein
The 980nm diode laser is optimized to target vascular tissues efficiently. Hemoglobin in small blood vessels absorbs the laser energy, leading to coagulation and eventual removal through the body’s natural metabolism.

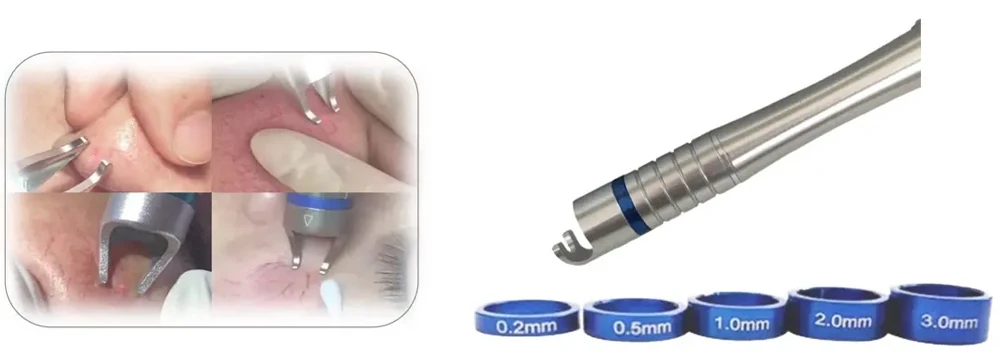

The focused handpiece delivers the laser precisely to affected veins (0.2–0.5mm spot size), protecting surrounding tissue.
Laser treatment also stimulates collagen production, improving skin thickness, elasticity, and preventing visible microvessels from recurring.
Nails fungus
Onychomycosis is a common fungal infection affecting the nail plate, nail bed, or surrounding tissues. It is primarily caused by dermatophytes and is typically characterized by changes in nail color, thickness, shape, and surface texture.
Laser nail fungus treatment is an advanced therapeutic approach that delivers targeted laser energy directly to the affected area. The laser effectively eliminates fungal pathogens while preserving healthy surrounding tissue. This treatment is safe, painless, and non-invasive, with no known side effects. It is suitable for various types and stages of onychomycosis and can be applied to different nail conditions.
Physiotherapy
The diode laser delivers focused thermal energy through its lens, producing controlled stimulation that interacts with the body’s tissues. This process enhances capillary permeability and boosts ATP production, which is essential for cellular repair and energy supply. By improving ATP availability, injured cells can regenerate more efficiently, accelerating tissue recovery, relieving pain, and promoting healing. The device automatically halts laser output when the temperature reaches a preset threshold, preventing burns and ensuring safe and comfortable treatment.
Additionally, the instrument applies infrared light in a manner similar to acupuncture and moxibustion, targeting nerve roots, nerve trunks, ganglia, acupoints, and local pain points. Based on principles of anatomy, neurophysiology, and traditional Chinese medicine, this approach helps regulate the body’s internal environment, promoting physiological balance and supporting disease treatment and prevention.

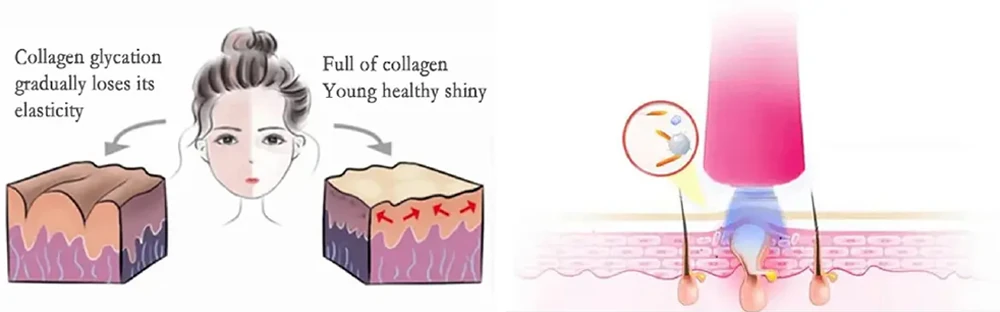

Skin rejuvenation, Anti inflammation
The diode laser provides a non-ablative, non-invasive stimulation therapy that works from the basal layer to improve overall skin quality. This gentle approach is suitable for a variety of skin types and conditions. The laser penetrates approximately 5mm into the skin at a specific wavelength, directly reaching the dermis where it stimulates collagen cells and fibroblasts. Under this low-level laser stimulation, skin proteins are regenerated, promoting natural repair and rejuvenation without causing any surface damage.
In addition, the laser energy helps expand microcapillaries, increase tissue permeability, and facilitate the absorption of inflammatory exudates. It enhances leukocyte phagocytosis, regulates enzyme activity, and modulates the body’s immune response. These combined effects result in reduced inflammation, decreased swelling, and accelerated tissue repair, achieving effective anti-inflammatory and skin-rejuvenating outcomes.
Eczema herpes
The diode laser precisely illuminates eczema, herpes and other affected skin areas, delivering targeted energy to lesions. Absorbed energy converts to bioenergy, activating macrophages and lymphocytes to boost specific/non-specific immunity and control inflammation.
It dilates microvessels to improve local blood flow and venous return, while enhanced vascular permeability supports enzyme-mediated oxygen metabolism. This fuels epithelial cell and fibroblast proliferation, driving tissue repair and functional recovery.
Additionally, laser stimulation boosts macrophage phagocytosis to enhance antimicrobial and immune capabilities, reducing inflammation, edema and exudation. It also promotes protein and complement synthesis, improving overall immune function and accelerating skin recovery.

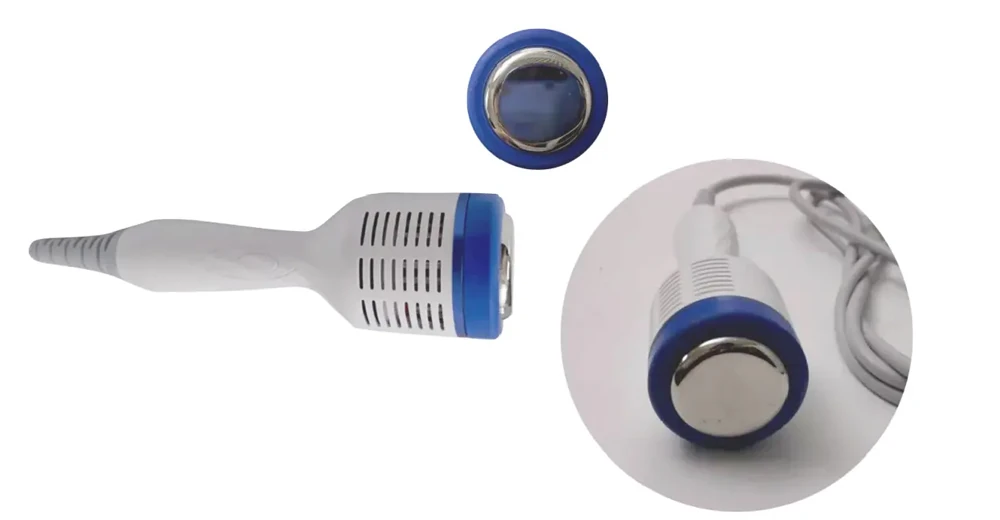

Ice compress hammer
The ice compress hammer helps lower the temperature of local tissues, relaxes the sympathetic nerves, constricts blood vessels, and decreases tissue sensitivity to pain.
It is recommended to apply ice compression immediately after laser treatment. Swelling and discomfort typically peak within the first 48 hours, and ice compression during this period maximizes pain relief and reduces edema by shrinking blood vessels. After the initial 48 hours, further ice application is generally unnecessary, allowing the tissues to recover naturally. Most swelling and soreness gradually subside within one week.
Technical Parameters
| Laser type | 980nm |
| Power | 30W |
| Output | Fibre-optic coupling |
| Pulsewidth | 60ms |
| Frequency | 1-9HZ |
| Mode | Pulse mode |
| Aiming Beam | Diode laser of 650nm±10nm,5mW (Max.),adjustable brightness |
| language | English ,Spanish, Russian, German, French, Portuguese or OEM |
| Light delivery system | detachable fiber systems, Core Size (Use only approved systems)≤200µm, SMA 905 connector |
| Machine Dimensions | 360mm*295mm*245mm |
| Electrical Requirement | AC 220V士10% 50HZ/AC 110V士10% 60HZ |
Advantages
Cutting-edge Laser Technology – Employs the latest diode laser system for precise removal of vascular lesions and spider veins.
No Consumable Components – Designed for continuous operation up to 24 hours without replacement parts.
Safe and Non-invasive – Treatment avoids burns, downtime, redness, or scarring.
Ultra-fine Treatment Tip – With a diameter of only 0.01mm, it ensures the epidermis remains intact.
High Energy Density – High-frequency output instantly coagulates target tissue, which naturally sheds within one week.
Fewer Sessions Required – Typically only one or two treatments are needed to achieve visible results.
Portable & Smart Design – Compact and intelligent structure makes treatment convenient and efficient.
Professional Handpiece – Ergonomically designed for precise, easy handling.
Minimized Trauma – Patented directional conduction technology targets capillaries accurately, breaking hemoglobin instantly and causing immediate vessel shrinkage and solidification, eliminating red blood filaments effectively.
Service
1. Maintenance Service
Warranty Coverage – One-year free maintenance starting from the purchase date. Any malfunctions during this period are repaired at no cost.
Rapid Support – Contact us via telephone, fax, Skype, WhatsApp, Viber, or email. Our team responds within one hour and resolves issues promptly.
Quality Assurance – We ensure product quality under normal use. Free maintenance is provided for host defects during the warranty. After warranty expiration, spare parts are provided at cost price, while technical guidance remains free for life.
2. Training
Comprehensive user manuals and instructional videos guide installation, operation, and maintenance.
24/7 online after-sales support ensures smooth learning and problem-solving.
3. ODM & OEM Service
General Clients – Free addition of company logos on the device screen.
Agents – Custom designs are available, including unique casing and interface software. Assistance is provided to develop and promote the product in your target market.
Before and After
Why Choose Us
Precision 980nm wavelength – Effectively targets vascular tissues and spider veins while sparing surrounding skin.
Focused handpiece design – Ensures laser energy is delivered precisely to affected areas.
Versatile applications – Treats spider veins, nail fungus, eczema, herpes, physiotherapy, and skin rejuvenation.
Safe and comfortable – Automatic energy control prevents overheating.
Enhances skin quality – Stimulates collagen, improves elasticity, and promotes tissue repair.
