Short Introduction

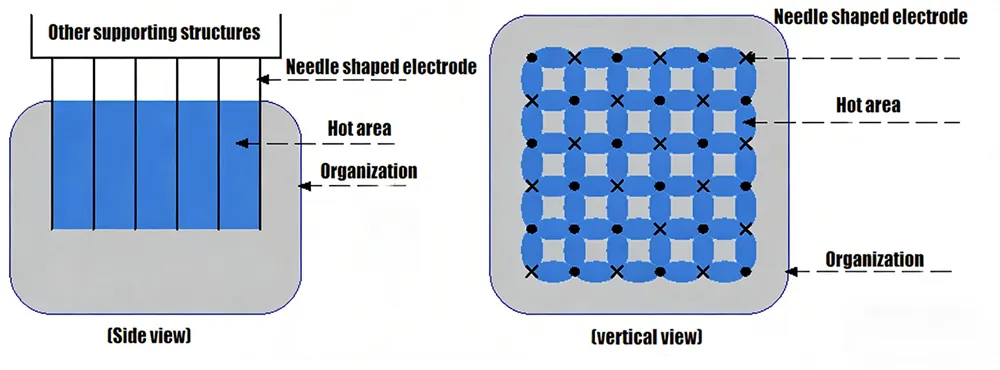

HM-MF-01 Micro needle RF Activation Technology works by gently heating facial skin after micro-lesions are performed to help restore and resurface connective tissues. When heated to a certain temperature, the main structural protein collagen in connective tissue will decompose. Over the course of 6 weeks, collagen that is broken down during a treatment reforms and connective tissues become much tighter and stronger. The face is lifted and volume is added to hallow areas.
Description

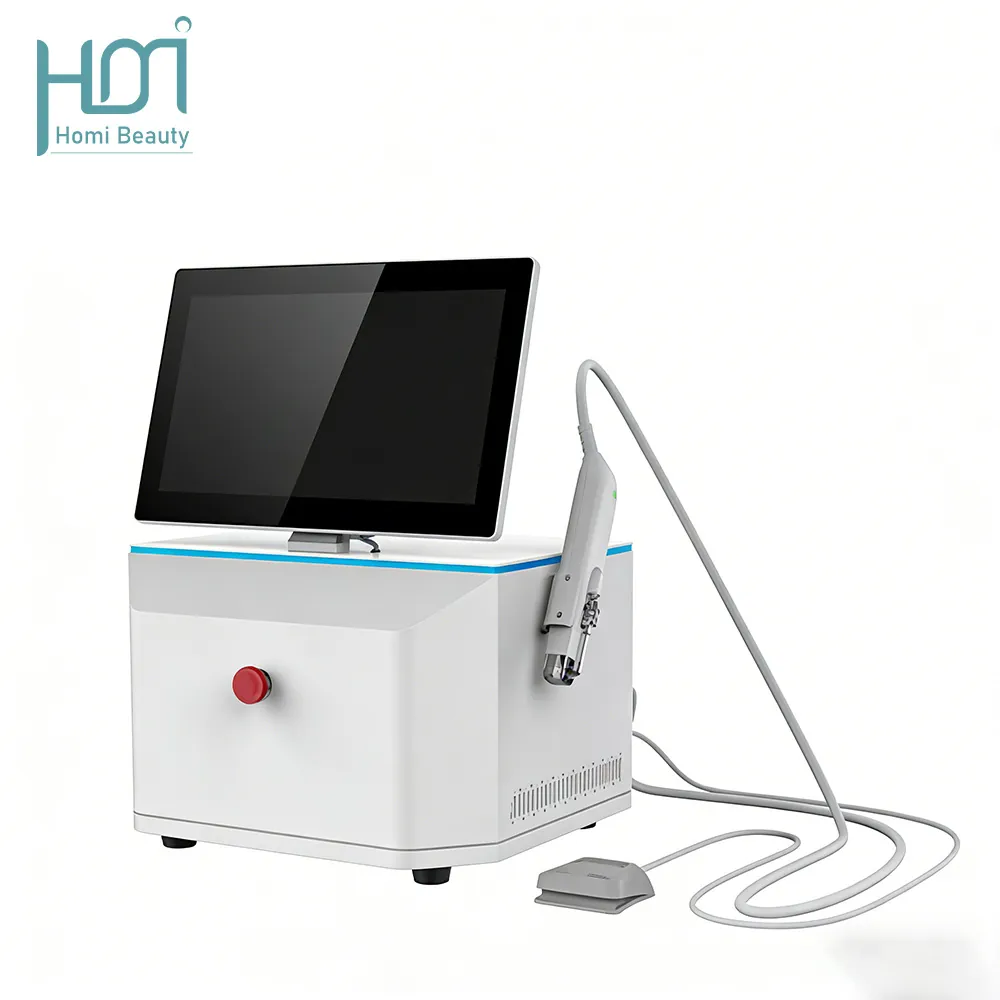

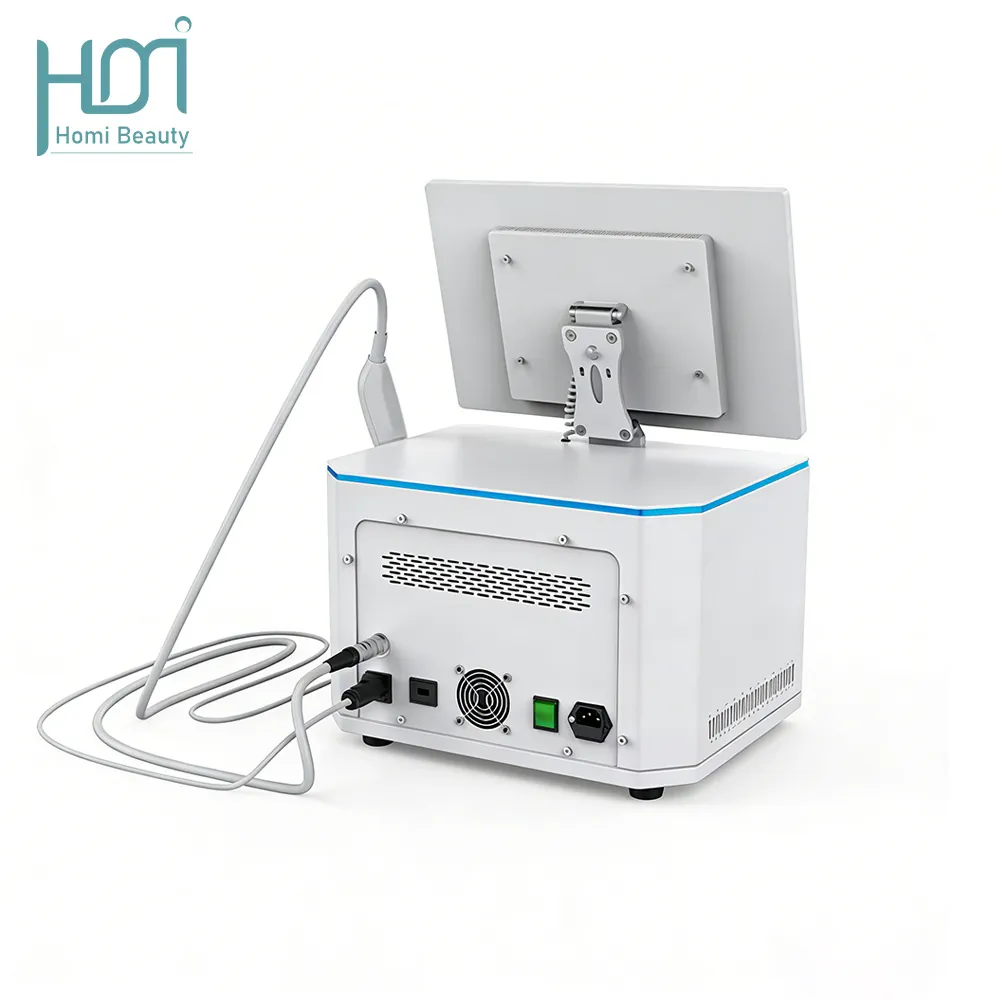

Also known as Multi-Functional Skin Rejuvenation Instrument, features a maximum depth of 7mm and is a new high-end skin beauty device. It integrates multi-mode energy delivery, suction-assisted technology, non-suction modes, needle array configurations, layered treatment, insulated and non-insulated needle bodies, energy-activated care functions, and intelligent consumables management technology.

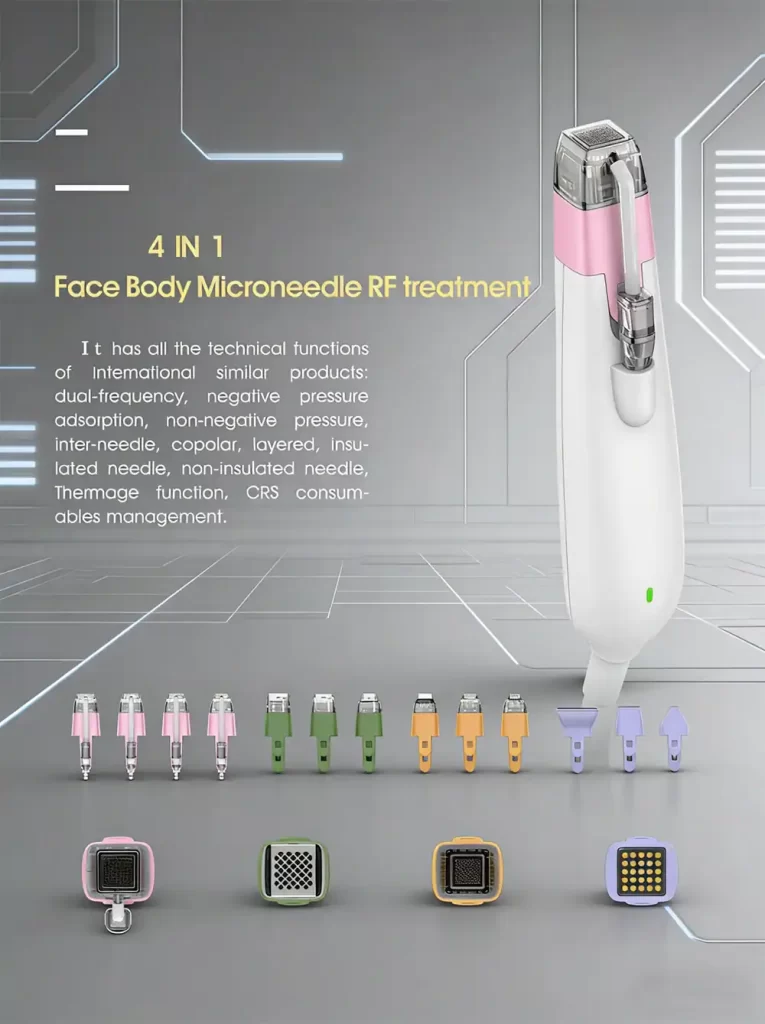

The device is equipped with interchangeable probes in 4 different color configurations (Pink including NV64, NV49, NV36, NV9, 4 heads in total; Apricot Yellow including IS49, IS25, IS5, 3 heads in total; Green including IC40, IC24, IC12, 3 heads in total; Light Purple including HR1, HR2, HR3, 3 heads in total). The standard configuration comes with 13 working heads in total. The system allows free adjustment to set the insulated heads to penetrate the skin at different target tissue depths (ranging from 0.2–7mm), delivering targeted care for 7mm deep subcutaneous tissue conditioning, with energy-activated action that reaches up to 7mm into the subcutaneous layer to support skin texture refinement and tissue conditioning.
The face and body multi-level energy delivery system automatically channels care energy to multiple treatment depths in a single cycle. It can sequentially target tissues across five layers at millisecond intervals, treating 1–5 skin layers simultaneously. This design significantly shortens care time, minimizes skin irritation, and enhances care uniformity, delivering tailored, localized care solutions for skin revitalization and texture refinement across the whole body. The Depth device offers deeper tissue reach than comparable multi-level energy beauty devices available on the market today.
Precise Dual-Mode Energy Settings
Precise Dual-Mode Energy Settings: 700KHz (for IS and IC series needle arrays); 2.2MHz (for NV series needle arrays)

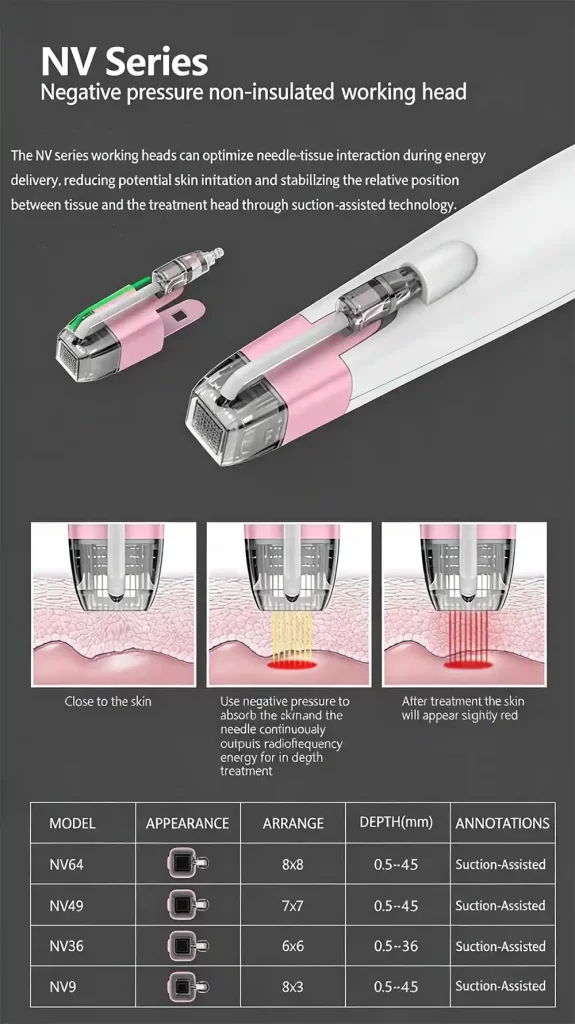

Pink Head
The electrodes in this pink series, due to the fully exposed non insulating nature of the needle, can cause electro coagulation of the needle opening during energy delivery, reducing potential skin irritation. They stabilize the relative position between tissue and the treatment head through suction-assisted technology.The diameter of the single needle body is 0.2mm, the needle spacing is 1.5mm, and the working depth is adjustable from 0.2mm to 4.5mm.

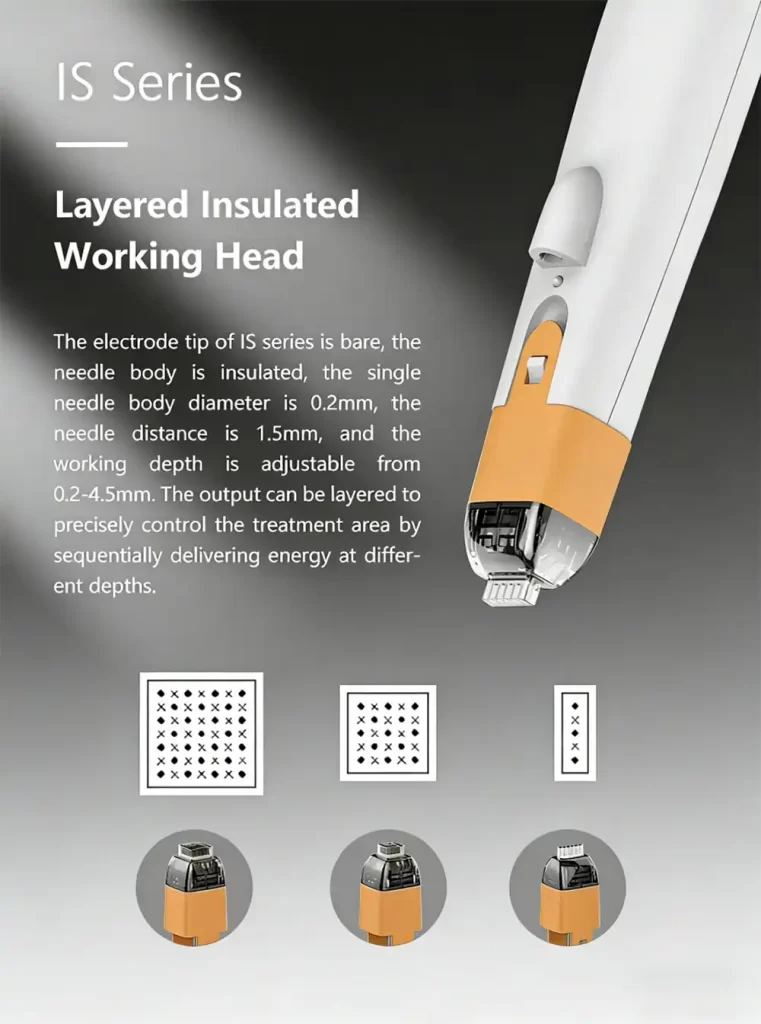

Yellow Head

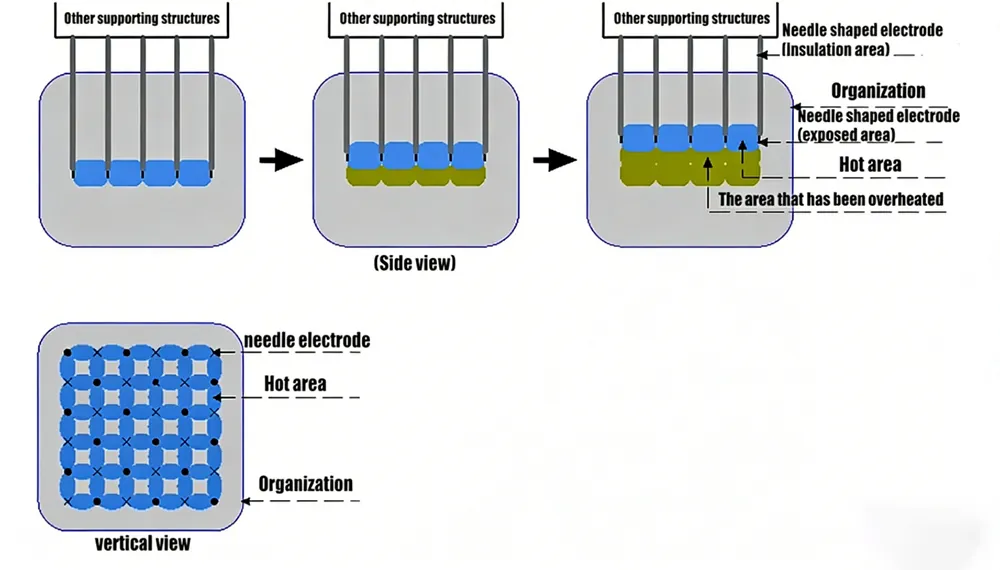

The electrode tip of this yellow series is exposed and the needle body is insulated. The single needle diameter is 0.2mm, the needle spacing is 1.5mm, and the working depth is adjustable from 0.2mm to 4.5mm. And it can output in layers, precisely controlling the treatment area by sequentially outputting energy at different depths.

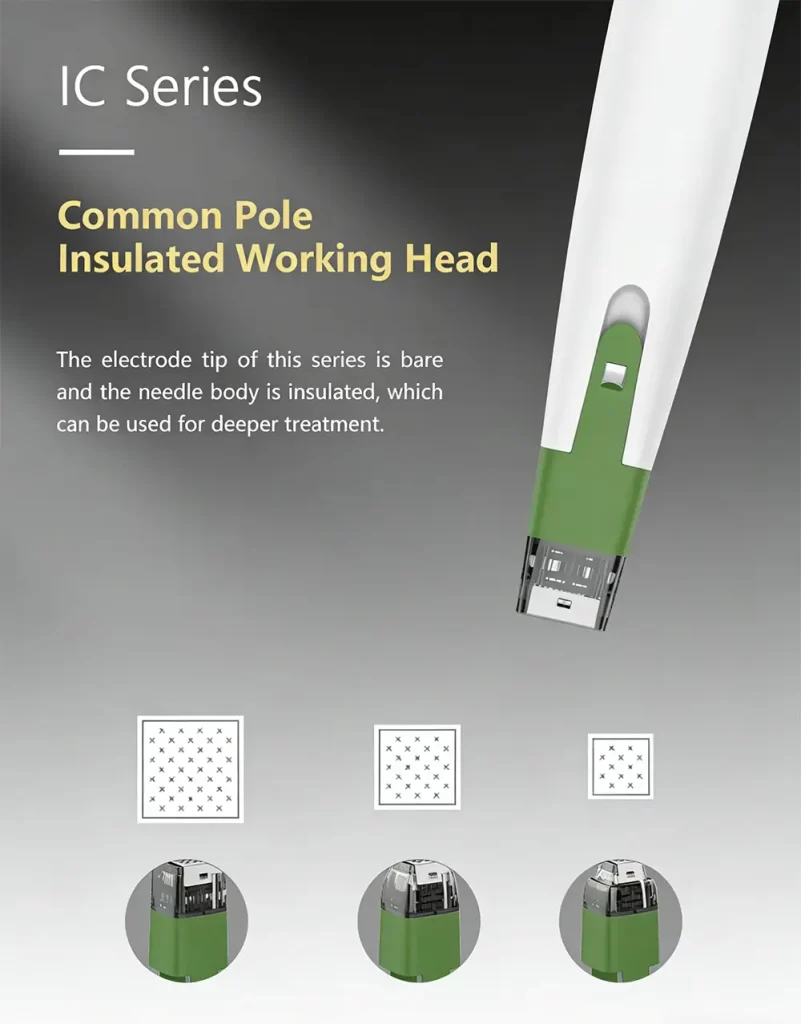

Green Head
The electrode tip of this green series is exposed and the needle body is insulated. The single needle diameter is 2.5mm, the needle spacing is 1.5mm, and the working depth is adjustable from 0.2mm to 7mm. And it can automatically output in 1-5 layers, precisely controlling the treatment area by sequentially outputting energy at different depths.

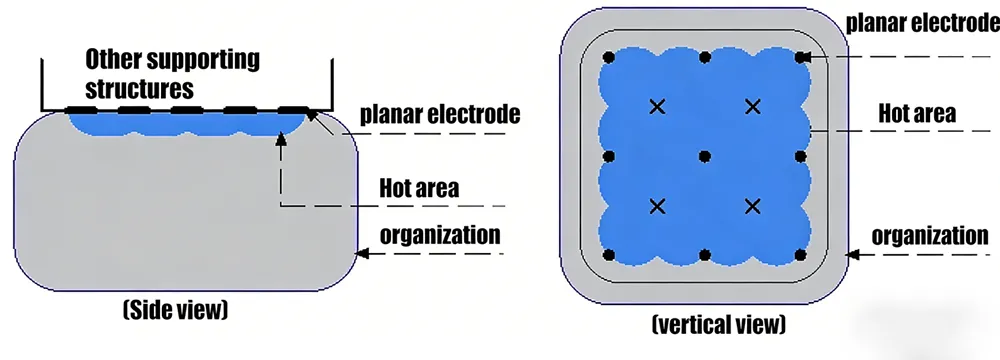

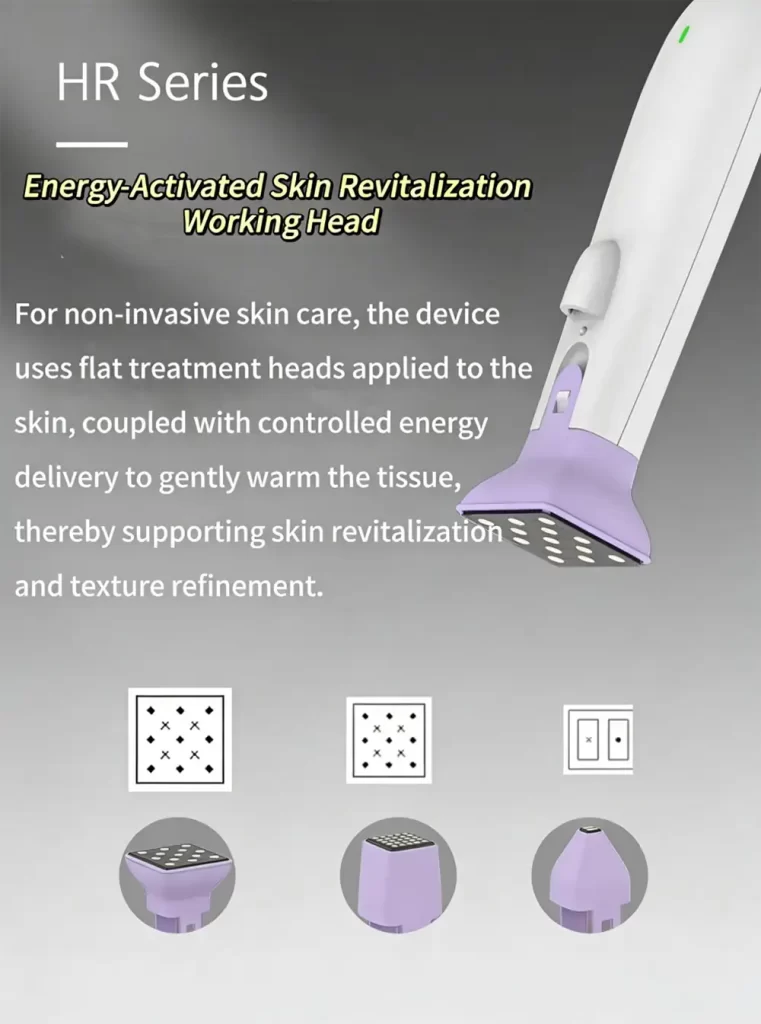

Light Purple Head
For non-intrusive thermal therapy, the device is expected to use flat electrodes attached to the affected area, coupled with controlled energy delivery to raise the temperature of the tissue, thereby achieving the purpose of thermal therapy.
Applications
| Scars | Stretch marks |
| Acne (dries up sebaceous glands) | Acne scarring ·Fine lines/Wrinkles |
| Loose skin (laxity) | Uneven skin texture |
| Large pores | Reduces fat—only on body/under chin/jowls |
Functions
| Improve pores, scars, deep wrinkles, acne, pigment calm. | It makes the skin smooth, tighten pores |
| It has a minimum of pain and provide accurate energy | The minimally intrusive make even less epidermal damage |
| It makes the energy directly penetrate to the target area, in order to obtain a sufficient effect. | Scar removal-including acne scar reduction |
| Applies to: stretch marks, anti-aging, anti-wrinkle treatment, hair loss/hair restoration, Hyperpigmentation treatment. | |
